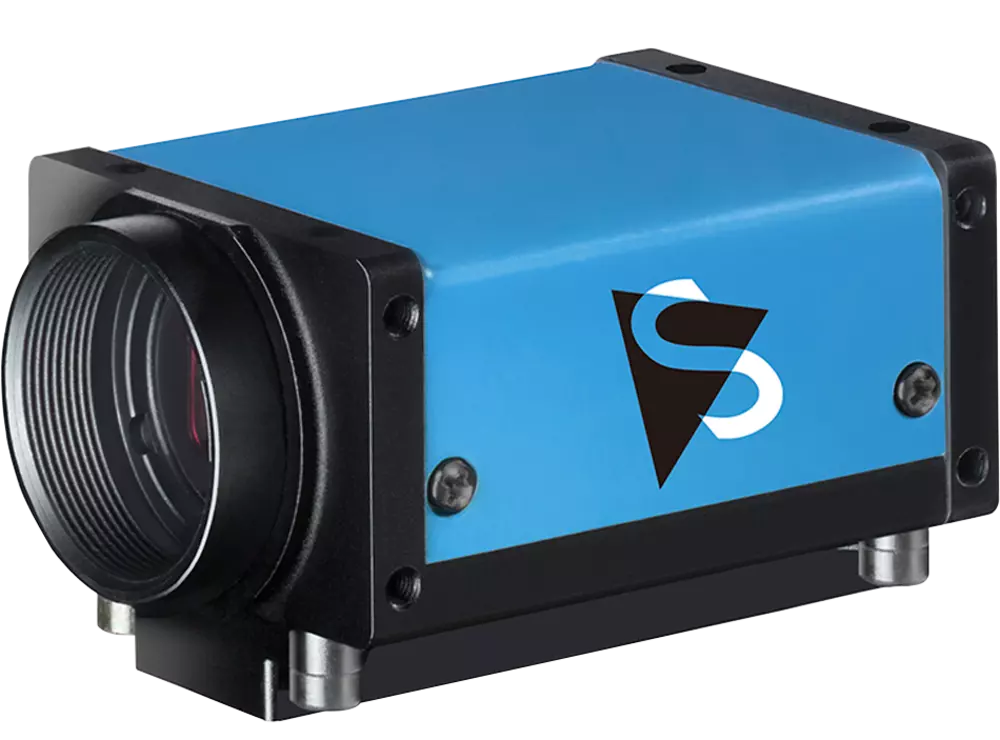

دوربین صنعتی تک رنگ سری 38G
DFK 38GX540-a
38G Series
- دوربین صنعتی رنگی سری 38G
- رابط GigE (RJ45)
- سنسور 1.2 اینچی سونی CMOS Pregius S IMX540
- 5320 × 4600 ( 24.5 مگاپیکسل ) تا 4 فریم در ثانیه
- اندازه پیکسل: H: 2.74 میکرومتر ، V: 2.74 میکرومتر
- شاتر Global
- ورودی های تریگ و I/O
- فقط 29 × 44 × 75 میلی متر
| General Behavior | |
| Vision Standard |  |
| Dynamic Range | 12 bit |
| Resolution | 5,320×4,600 (24.5 MP) |
| Frame Rate | 4 fps |
| Video Output Format | 8-Bit Bayer (RG), 12-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24 |
| Interface (Optical) | |
| IR-Cut Filter | |
| Sensor Type | CMOS Pregius S |
| Sensor Specification | Sony IMX540 |
| Shutter | Global |
| Format | 1.2 inch |
| Pixel Size | H: 2.74 µm, V: 2.74 µm |
| Lens Mount | C (CS optional) |
| Interface (Electrical) | |
| Interface | Gigabit Ethernet (RJ45) |
| Supply Voltage | 9 VDC to 27 VDC or POE: 48 VDC to 56 VDC |
| Current Consumption | Approx. 400 mA @ 12 VDC |
| Auto-Iris Control | |
| Trigger | |
| I/O | |
| Interface (Mechanical) | |
| Dimensions | H: 29 mm, W: 44 mm, L: 75 mm |
| Mass | 165 g |
| Adjustments | |
| Shutter | 2 µs to 30 s |
| Gain | 0 dB to 48 dB |
| Environmental | |
| Housing Temperature (Operating) | -5 °C to 50 °C |
| Temperature (Storage) | -20 °C to 80 °C |
| Humidity (Operating) | 20 % to 80 % (non-condensing) |
| Humidity (Storage) | 20 % to 95 % (non-condensing) |
